MIMICS RCT

A randomised study comparing safety and effectiveness of the BioMimics 3D Vascular Stent
System to a straight stent control.

  • PI: Thomas Zeller, MD
  • Core laboratories: ultrasound; angiography; X-ray Clinical Event Committee (CEC) adjudication
  • 2-year follow up
  • 8 German investigational sites
  • 76 patients enrolled with a 2:1 randomisation

Baseline Patient Demographics

  • BioMimics 3D enrolled population N=50
  • Control Stent enrolled population N=26

BioMimics 3D

Gender male
– (33/50)

66%

Age – Mean
years ± SD (N)
– 68 ± 10.4

0yrs

Control Stent

Gender male
– (17/26)

65%

Age – Mean
years ± SD (N)
– 67 ± 8.9

0yrs

P value

1.0

0.66

Rutherford Category

BioMimics 3D

Rutherford
category 1 –
(3/50)

6%

Rutherford
category 2 –
(7/50)

14%

Rutherford
category 3 –
(37/50)

74%

CLTI – (3/50)

6%

Control Stent

Rutherford
category 1 –
(1/26)

4%

Rutherford
category 2 –
(1/26)

4%

Rutherford
category 3 –
(23/26)

88%

CLTI – (1/26)

4%

P value

1.00

0.74

0.27

1.00

⇒ [Insert comment]

Lesion Characteristics

BioMimics 3D

Lesion Length
(mm) – 66 ±
29

66 ± 29

Occlusion
(Total) – 44%

44%

Calcification
(Moderate to
Severe) – 52%

52%

Control Stent

Lesion Length
(mm) – 63 ±
28

63 ± 28

Occlusion
(Total) – 46%

46%

Calcification
(Moderate to
Severe) – 58%

58%

P value

0.66

1.00

0.81

⇒ [Insert comment]

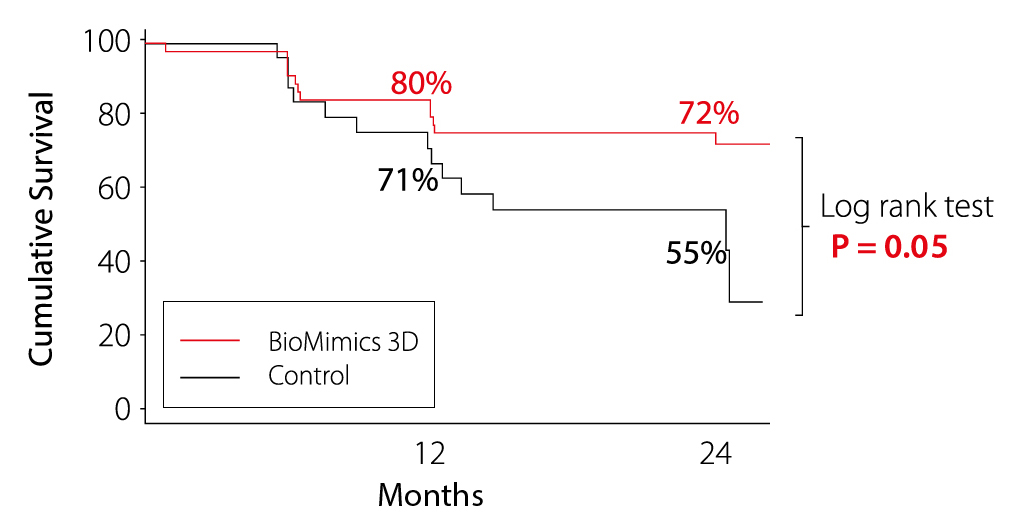

Primary Patency

Kaplan Meier Survival Estimate from Loss of Patency

Defined as PSVR >2.0, or  where angiography reveals >50% diameter stenosis;  or adjudicated clinically-driven TLR

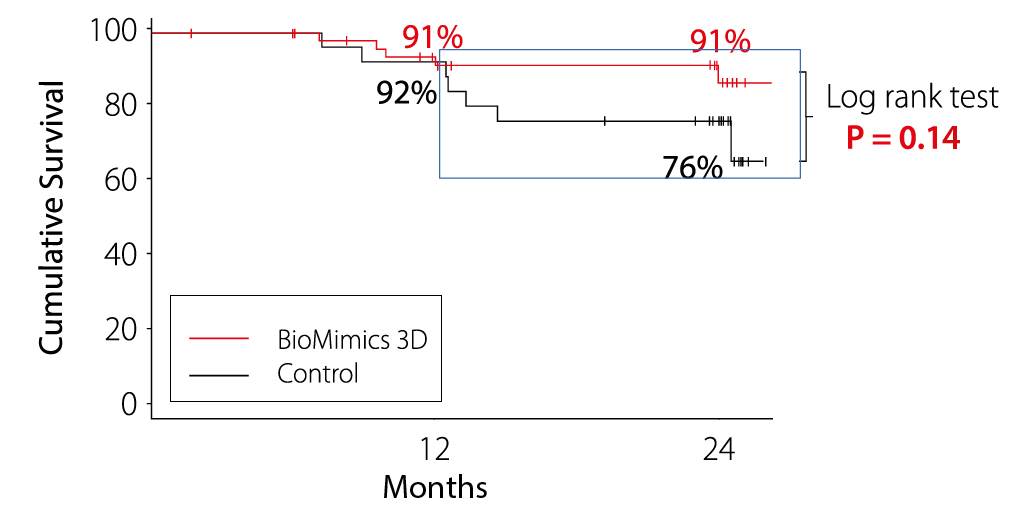

Clinically-Driven Target Lesion Revascularisation

Kaplan Meier Estimate of Survival from clinically-driven TLR determined through Independent Event Adjudication

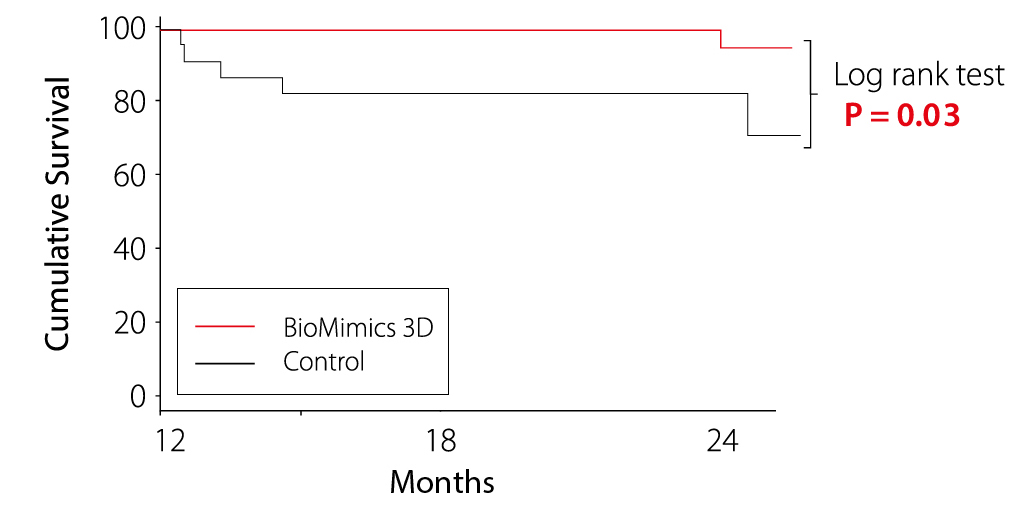

Long Term TLR Benefit

12-Month Landmark Analysis

Kaplan Meier Estimate of Survival from clinically-driven TLR determined through Independent Event Adjudication

Summary

MIMICS-RCT Provided the first clinical proof supporting the durable outcome benefit arising from the BioMimics 3D stent compared to a straight nitinol stent

  • Freedom from loss of Primary Patency at 2 years
    • 72% for BioMimics 3D vs 55% for straight control stents (P=0.05).
  • Freedom from CDTLR
    • 91% for BioMimics 3D maintained out to 2 years.
  • Core lab X-ray imaging review confirmed 0% stent fractures at 2 years.
  • Improvement in Rutherford Category
    • 88% of patients treated with BioMimics 3D experienced an improvement of one or more Rutherford category at 2 years vs baseline.

Data on file at Veryan Medical

All percentages are rounded to a whole number
